10 Bar Vacuum Hardening
High-Performance Tooling, Maximum Tool Life, Less Distortion

When precision tooling demands maximum metallurgical properties with minimal distortion, our 10 Bar Vacuum Hardening process delivers. Designed for dies, tools, and molds—this is the cleanest, most reliable way to harden tool steels for long-lasting performance.

Schedule a Call

What Is 10 Bar Vacuum Hardening?

black and white round frame

Our 10 Bar Vacuum Furnace system uses computer-controlled cycles, 12 thermocouple monitoring points, and fluidized bed tempering to produce precise, repeatable results. The process is ideal for die cast tooling, hot form tooling, forging, and precision molds—ensuring through-hardening, optimal metallurgical properties, and minimal dimensional distortion.

Unlike oil quenching or outdated batch ovens, vacuum hardening combines clean, scale-free results with unmatched internal metallurgical performance.

The process ensures complete transformation to tempered martensite while:

  • Reducing stress by utilizing interruptible quench and ramp soak profiles

  • Preventing surface cracking and scaling

  • Enabling better dimensional control

  • Maximum toughness and impact strength

Combined with DYNA-BLUE® coatings, this process can reduce total tooling costs by 50% or more by extending life and reducing post-treatment machining.

Schedule a Call

Process Comparison Table

Method 10 Bar Vacuum Oil Quenching Conventional Oven
Distortion Risk ✅ Minimal ❌ High ❌ High
Scale-Free Surface ✅ Yes ❌ No ❌ No
Core/Surface Uniformity ✅ Excellent ❌ Poor ❌ Poor
Heat Rate Control ✅ 12-point monitoring ❌ Variable ❌ Slow
Tempering Accuracy ✅ Fluidized Bed ❌ Unreliable ❌ Uneven
Stress Relief Built-In ✅ Yes ❌ Optional ❌ No

Improved metallurgical Properties. Tighter Tolerances. Maximum Tool Life.

Key Benefits of 10 Bar High Pressure Vacuum Hardening

white sedan on a parking lot

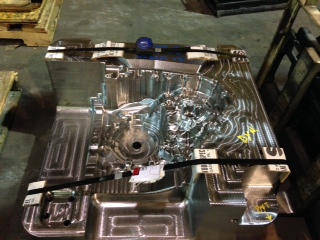

Vacuum hardening is recommended for high-performance tooling used in:

  • Die Casting: Dies requiring high quality, high
    performance and maximum toughness for maximum
    tool life.

  • Hot Forming & Forging: Complex dies requiring dimensional integrity and durability

  • Injection Molding Cores: Dimensional integrity, maximum toughness, and wear resistance.

  • Stamping Punches: Improved toughness and wear resistance

  • Non-Ferrous Materials: Solution Annealing & Age Hardening of 3D Printed and conventional components

  • Supports tool steels like: H-13, D-2, S-7, A-2, M-2, DH21, W303, CPM 10V, 420SS

  • 3500 lb capacity; chamber size: 36” x 36” x 48”

  • Clean, scale-free finish—no sandblasting required

  • Computer-controlled heat cycles for consistency & uniformity

  • Fluidized Bed Tempering ensures better temperature uniformity + 2°F and transformation to tempered martensite.

  • Cooling rates up to 200°F/min for through-hardening of thick sections

  • Stress relief can be incorporated into cycle

  • Quench hold above Martensite Start (Ms) temp = less cracking

  • Meets industry standards: AMS 2750E, NADCA 207-2015, GM HPDC-G-2, Ford AMTD 2010 Rev. L, Chrysler NP 2080

  • ISO 9001-2015 certified, Tier 1 supplier to automotive and aerospace industries

  • 2–3 day standard turnaround

  • Metallurgically proven to provide maximum impact toughness- Charpy V-notch

Simple and Efficient Treatment Process

Working with Dynamic is straightforward. We’ve streamlined the entire process to deliver exceptional results with minimal disruption:

Step 1

Consultation

We listen to your specific tooling challenges and performance goals.

Step 2

Data Collection

We inspect the steel type, current failure modes, and customer requirements.

Step 3

Process Design & Application

We apply the optimal Vacuum Hardening process, tailored to your material, objectives, and application.

Step 4

Quality Assurance

Every part is tested and inspected to ensure performance specs are met or exceeded.

Schedule a Call

Customer Comments

“I used to have to leave extra grind stock on my tools but now I can finish machine closer to finish size which cuts down on machining costs. I also had problems with another heat treater in the past with movement and size change when I had my tools nitrided, but Dynamic solved both these problems.

Quality Matters

When quality matters and you need the maximum performance out of your dies, tools or mold components: Let us use over 40 years of metallurgical knowledge to give you better tool life-every time.
